Dodge Journey: Removal, Installation

REMOVAL

Electronic Control Modules

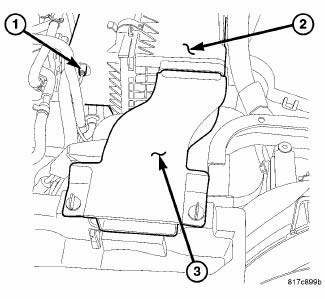

Fig. 30: Air Inlet Duct

1. Remove air inlet duct (3).

2. Disconnect negative battery cable.

3. Disconnect vacuum hose (1).

4. Remove air filter housing assembly (2).

Electronic Control Modules

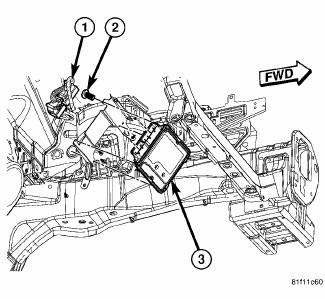

Fig. 31: Removing/Installing ECM - 2.0L Diesel

5. Disconnect both ECM (1) electrical connectors.

6. Remove ECM bracket retaining bolts (2) and remove ECM (3).

INSTALLATION

Electronic Control Modules
Fig. 32: Removing/Installing ECM - 2.0L Diesel

1. Install ECM (3) on mounting bracket. Torque fastener to 10.7N.m (95 lbs. in.).

2. Connect both ECM electrical connectors (1).

Electronic Control Modules
Fig. 33: Air Inlet Duct

3. Install air filter housing assembly (2).

4. Connect vacuum hose (1).

5. Connect negative battery cable.

6. Install air inlet tube (3).

7. Reprogram ECM.
