Dodge Journey: Module, satellite video

REMOVAL

1. Disconnect and isolate the negative battery cable.

2. Move the front passenger seat to the most forward position.

Audio and Video
Fig. 8: Antenna & Electrical Connectors

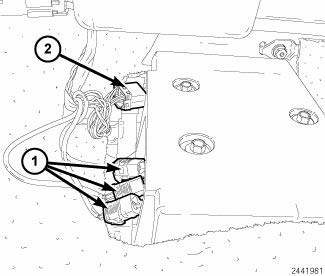

3. Disconnect the three antenna connectors (1) and the electrical connector (2).

Audio and Video
Fig. 9: Retainers & Video Module Housing

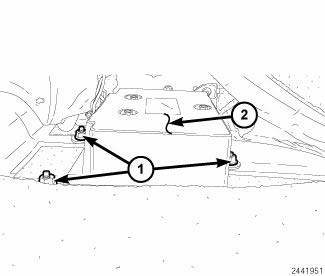

4. Remove the three retainers (1) securing the video module housing (2) to the floor, remove video housing and module from vehicle.

Audio and Video
Fig. 10: Video Module Retainers & Video Module Housing

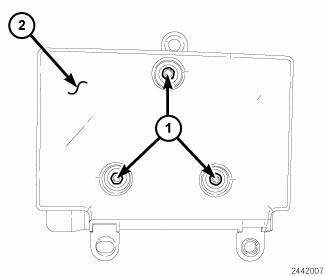

5. Remove the video module retainers (1) to the video module housing (2).

INSTALLATION

Audio and Video
Fig. 11: Video Module Retainers & Video Module Housing

1. Install the video module to the housing.

Audio and Video
Fig. 12: Retainers & Video Module Housing

2. Install the video module into the vehicle and Install the three retainers (1) securing the video module housing (2) to the floor.

Tighten to 6 N.m (53 in. lbs.).

Audio and Video
Fig. 13: Antenna & Electrical Connectors

3. Connect the three antenna connectors (1) and the electrical connector (2).

4. Move the front passenger seat back to the original position.

5. Connect the battery negative cable.

    Removal, Installation
    REMOVAL Fig. 6: Backup Camera & Liftgate & Lights 1. Disconnect the negative battery cable. 2. Remove the four retainers (1) holding the lightbar (5) to the liftgate (6). 3. Using a ...

    Monitor, media system
    REMOVAL Fig. 14: Removing / Installing Mounting Fasteners 1. Disconnect and isolate the battery negative cable. 2. Open the video screen to access the mounting fasteners. 3. Remove the mount ...
