The oil change indicator system will remind you that it is time to take your vehicle in for scheduled maintenance.

On Electronic Vehicle Information Center (EVIC) equipped vehicles “Oil Change Required” will be displayed in the EVIC and a single chime will sound, indicating that an oil change is necessary.

On Non-EVIC equipped vehicles “Change Oil” will flash in the instrument cluster odometer and a single chime will sound, indicating that an oil change is necessary.

Based on engine operation conditions the oil change indicator message will illuminate, this means that service is required for your vehicle. Have your vehicle serviced 8 as soon as possible, within the next 500 miles (805 km).

NOTE:
• The oil change indicator message will not monitor the time since the last oil change. Change your vehicles oil if it has been 6 months since your last oil change even if the oil change indicator message is NOT illuminated.

• Change your engine oil more often if you drive your vehicle off-road for an extended period of time.

• Under no circumstances should oil change intervals exceed 6,000 miles (10 000 km) or six months, whichever comes first.

Your authorized dealer will reset the oil change indicator message after completing the scheduled oil change. If a scheduled oil change is performed by someone other than your authorized dealer, the message can be reset by referring to the steps described under “Electronic Vehicle Information Center (EVIC)/Oil Change Required” in “Understanding Your Instrument Panel” or under “Instrument Cluster Description/Odometer/Trip Odometer” in “Understanding Your Instrument Panel” for further information.

At Each Stop for Fuel

• Check the engine oil level about five minutes after a fully warmed engine is shut off. Checking the oil level while the vehicle is on level ground will improve the accuracy of the oil level reading. Add oil only when the level is at or below the ADD or MIN mark.

• Check the windshield washer solvent and add if required.

Once a Month

• Check tire pressure and look for unusual wear or damage.

• Inspect the battery and clean and tighten the terminals as required.

• Check the fluid levels of coolant reservoir, brake master cylinder, and transmission and add as needed.

• Check all lights and other electrical items for correct operation.

At Each Oil Change

• Change the engine oil filter.

• Inspect the brake hoses and lines.

CAUTION:
Failure to perform the required maintenance items may result in damage to the vehicle.

Required Maintenance Intervals

Refer to the Maintenance Schedules on the following pages for the required maintenance intervals.

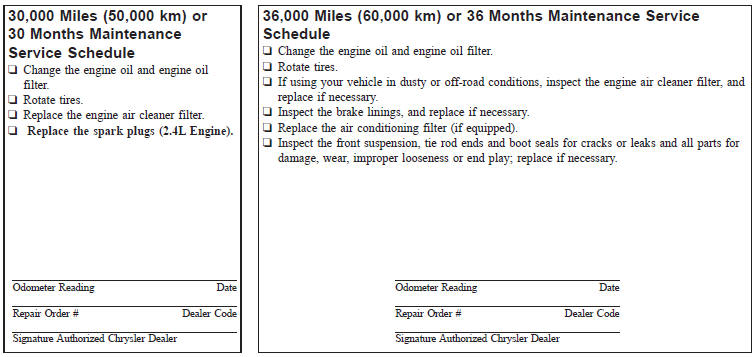

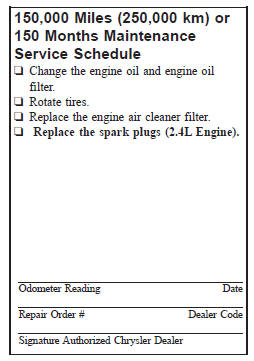

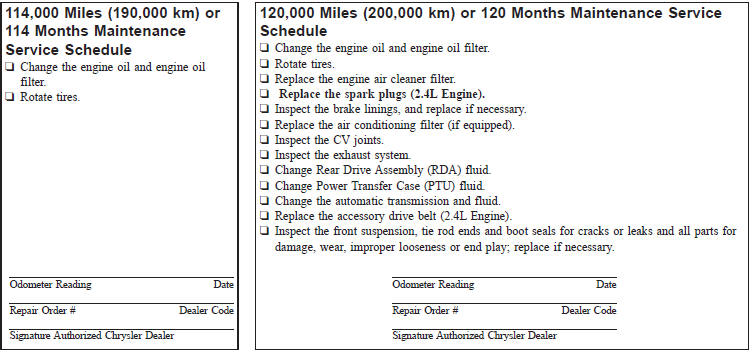

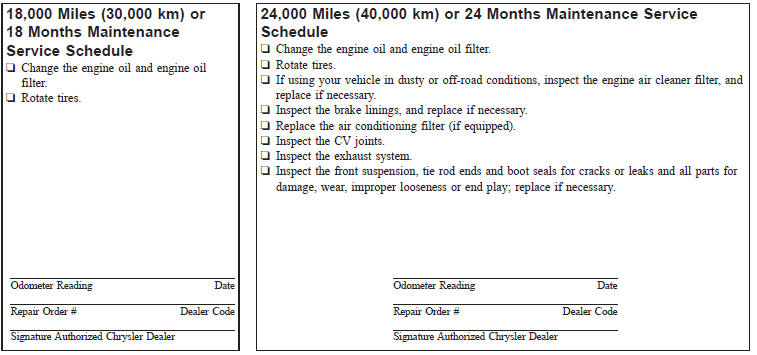

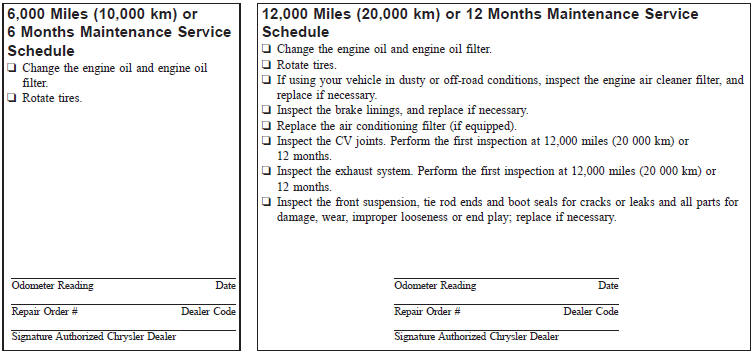

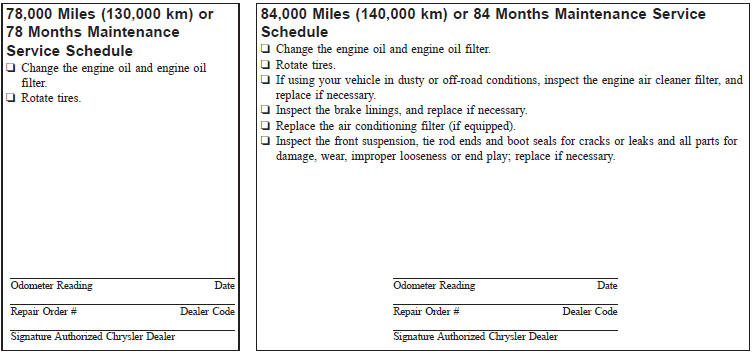

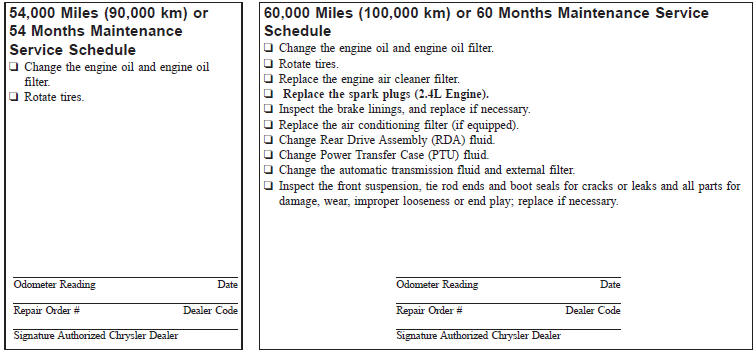

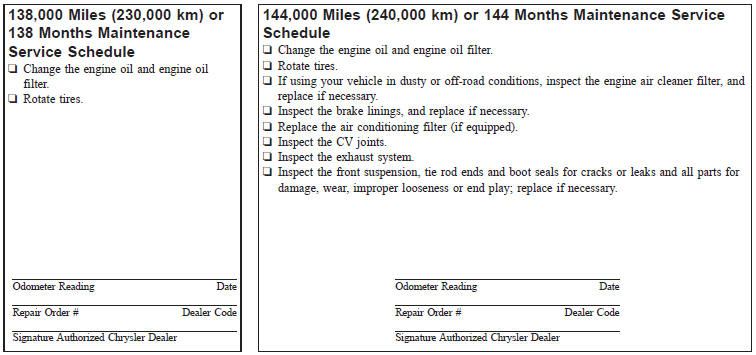

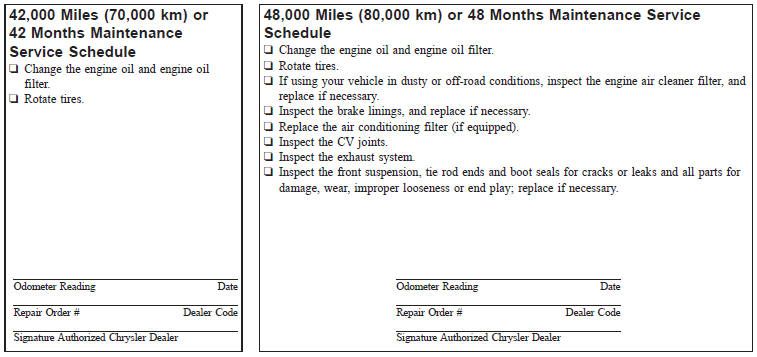

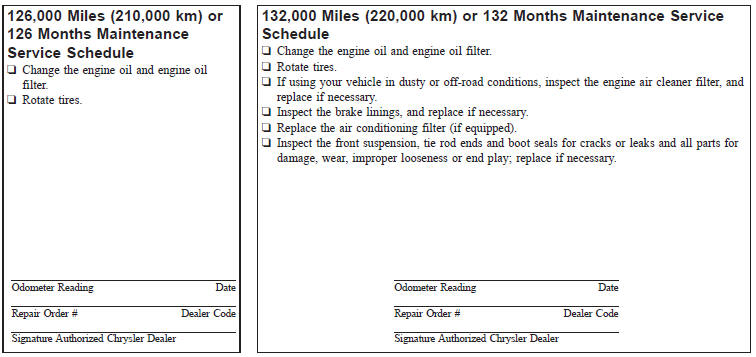

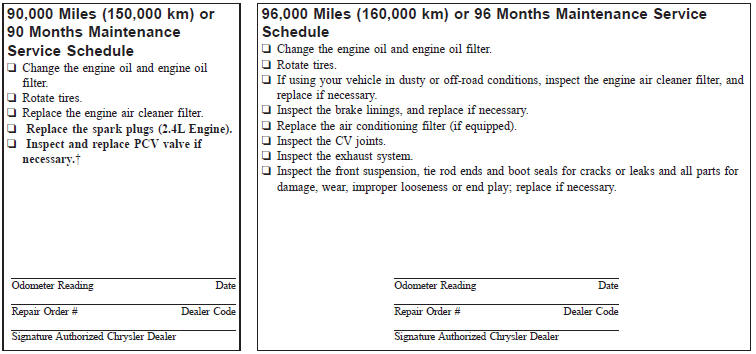

Maintenance Service Schedule

Maintenance Service Schedule

Maintenance Service Schedule

Maintenance Service Schedule

Maintenance Service Schedule

Maintenance Service Schedule

Maintenance Service Schedule

Maintenance Service Schedule

Maintenance Service Schedule

Maintenance Service Schedule

Maintenance Service Schedule

† This maintenance is recommended by the manufacturer to the owner, but is not required to maintain emissions warranty.

WARNING:
• You can be badly injured working on or around a motor vehicle. Do only service work for which you have the knowledge and the right equipment. If you have any doubt about your ability to perform a service job, take your vehicle to a competent mechanic.

• Failure to properly inspect and maintain your vehicle could result in a component malfunction and effect vehicle handling and performance. This could cause an accident
