ENGINE COMPARTMENT — 2.4L
ENGINE COMPARTMENT — 2.4L

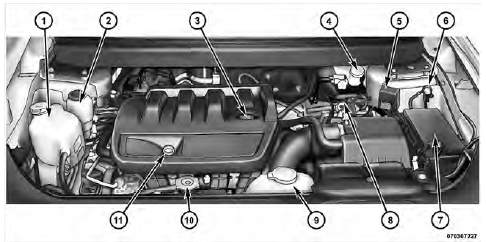

1 — Engine Coolant Reservoir.

7 — Totally Integrated Power Module (TIPM).

2 — Power Steering Fluid Reservoir.

8 — Automatic Transmission Dipstick.

3 — Engine Oil Fill.

9 — Washer Fluid Reservoir.

4 — Brake Fluid Reservoir.

10 — Coolant Pressure Cap 5 — Remote Jump Start (Positive Battery Post).

11 — Engine Oil Dipstick.

6 — Remote Jump Start (Negative Battery Post).

    ENGINE COMPARTMENT — 3.5L
    ENGINE COMPARTMENT — 3.5L 1 — Engine Coolant Reservoir. 6 — Totally Integrated Power Module (TIPM). 2 — Power Steering Fluid Reservoir. 7 — Air Cleaner Filter. 3 — Brake Fluid Reser ...
