Dodge Journey: Seal, oil pump

REMOVAL

Automatic Transmission 41TE

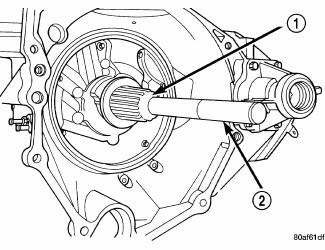

Fig. 367: Removing Oil Pump Seal

  1. - SEAL PULLER C-3981-B
  2. - OIL PUMP SEAL

1. Remove transaxle from vehicle.

2. Using Seal Puller C-3981B (1) , remove oil pump seal (2).

INSTALLATION

Automatic Transmission 41TE

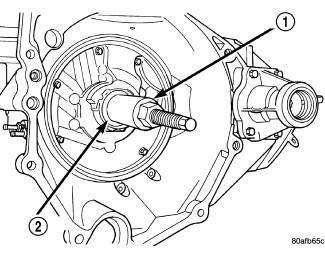

Fig. 368: Installing Oil Pump Seal

  1. - SEAL INSTALLER C-4193
  2. - HANDLE C-4171

1. Using Seal Installer C-4193A (1) , install oil pump seal.

2. Install transaxle to vehicle.
