Dodge Journey: Removal, Installation

REMOVAL

WARNING: Disable the airbag system before attempting any steering wheel, steering column, or instrument panel component diagnosis or service. Disconnect and isolate the negative battery (ground) cable, then wait two minutes for the airbag system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the airbag system. Failure to take the proper precautions may result in accidental airbag deployment and possible serious or fatal injury.

NOTE: Take the proper precautions to protect the front face of the instrument panel center bezel from cosmetic damage during this service procedure.

Heating & Air Conditioning

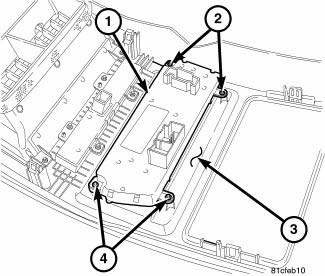

Fig. 25: AC Heater Control Removal/Installation

NOTE: MTC single zone A/C-heater control shown. Other A/C-heater controls similar.

1. Disconnect and isolate the negative battery cable.

2. Remove the center bezel (3) and place it on a workbench.

3. Remove the screws (2 and 4) that secure the A/C-heater control (1) to the back of the center bezel and remove the control.

INSTALLATION

Heating & Air Conditioning
Fig. 26: AC Heater Control Removal/Installation

NOTE: MTC single zone A/C-heater control shown. Other A/C-heater controls similar.

1. Position the A/C-heater control (1) onto the back of the center bezel (3).

2. Install the screws (2 and 4) that secure the A/C-heater control to the center bezel. Tighten the screws to 2 N.m (17 in. lbs.).

3. Install the center bezel.

4. Reconnect the negative battery cable.

NOTE: The A/C-heater control will automatically perform the Actuator Calibration function when the ignition is initially turned on when installing a new control or when reinstalling the original control. However, the Actuator Calibration function must be manually initiated using a scan tool if the A/C-heater control has been previously installed in another vehicle.

5. If required, initiate the Actuator Calibration function using a scan tool.

    Description
    MANUAL TEMPERATURE CONTROL (MTC) SINGLE ZONE The A/C-heater control for the front Manual Temperature Control (MTC) single zone system allows one temperature setting for the entire vehicle. All con ...

    Module, power, front blower motor
    DESCRIPTION Fig. 27: Blower Mtr Pwr Module A blower motor power module is used on this model when equipped with the automatic temperature control (ATC) heating-A/C system. Models equipped with t ...
