Dodge Journey: Installation

DIESEL PARTICULATE FILTER

Exhaust System

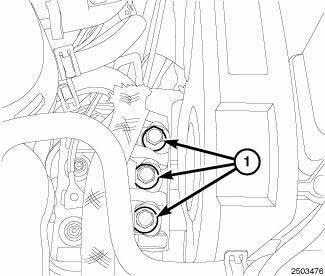

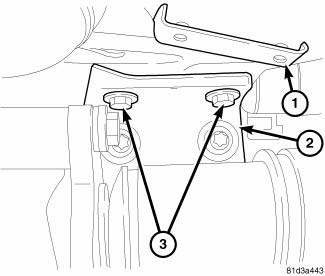

Fig. 12: Engine Support Bracket Bolts

1. Position the DPF and turbocharger gasket into the vehicle. Do not tighten at this time

2. Tighten the three bolts (1) at the right engine support bracket. Tighten the bolts to 45 N.m (33 ft. lbs.)

3. Raise and support the vehicle.

Exhaust System
Fig. 13: Removing/Installing Diesel Particulate Filter To Axle Bracket Bolts

  1. - DPF
  2. - AXLE SUPPORT BRACKET
  3. - DPF TO AXLE SUPPORT BRACKET BOLTS

4. Install the DPF to the axle support bolts (3). Tighten the bolts to 25 N.m (18 ft. lbs.).

5. Install the exhaust manifold temperature sensor.

6. Install the lower pressure differential tubing into DPF. Tighten the fitting to 45 N.m (33 ft.lbs.)

Exhaust System

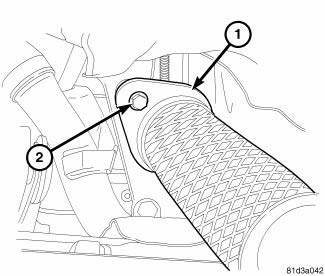

Fig. 14: Removing/Installing Diesel Particulate Filter To Exhaust Pipe Mounting Bolts

  1. - FLANGE
  2. - BOLT

7. Install the exhaust pipe to the DPF. Tighten the bolts (2) to 35 N.m (25 ft. lbs.).

8. Install the exhaust pipe to the muffler and tailpipe assembly. Tighten the bolts (2) to 35 N.m (25 ft. lbs.).

9. Position the DPF heat shield and install the lower DPF heat shield mounting bolts. Tighten the bolts to 5 N.m (44 in. lbs.).

10. Install the lower engine splash shield.

11. Lower the vehicle.

Exhaust System

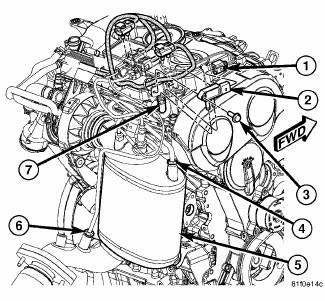

Fig. 15: DPF Components

  1. - ELECTRICAL CONNECTOR
  2. - PRESSURE DIFFERENTIAL SENSOR
  3. - MOUNTING BOLT
  4. - UPSTREAM PRESSURE TUBE
  5. - DPF
  6. - DOWNSTREAM PRESSURE TUBE
  7. - TUBING

12. Install the DPF (5) , gasket and clamp to the turbocharger. Tighten the clamp nut to 35 N.m (25 ft. lbs.).

13. Install the upper pressure differential tubing (4) into the DPF (5). Tighten the tubing to 45 N.m (33 ft.lbs.).

14. Attach the lower temperature sensor wires to their retainer.

15. Install the oxygen sensor into the top of the DPF (5). Tighten to 45 N.m (33 ft. lbs.).

16. Connect the oxygen sensor electrical connector at the DPF (5).

17. Install the upper temperature sensor to the DPF (5). Tighten the sensor to 45 N.m (33 ft.lbs.).

18. Connect the temperature sensor electrical connectors.

19. Install the right side rear engine harness bracket. Tighten the bolts to 10 N.m (89 in. lbs.).

20. Install the DPF heat shield upper mounting bolts. Tighten the bolts to 5 N.m (44 in. lbs.).

21. Install the differential pressure sensor tube bracket at the diesel particulate filter (DPF) (5).

22. Install the HVAC air intake box assembly.

23. Install the eight nuts to the strut tower brace. Tighten the sensor to 55 N.m (41 ft.lbs.).

24. Install the windshield wiper arm linkage.

25. Install the engine cover.

26. Connect the negative battery cable.

27. Start vehicle and check for leaks. Repair as necessary.

    Removal
