Dodge Journey: Cover(s), cylinder head, left

REMOVAL

1. Disconnect negative battery cable.

2. Disconnect electrical connectors from ignition coils and capacitor. Reposition electrical harness.

3. Remove ground strap from cylinder head cover stud.

2.7L DOHC Engine

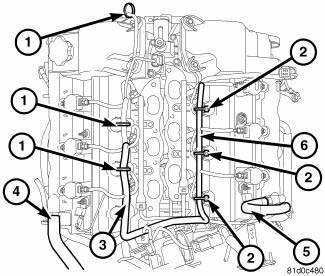

Fig. 118: Engine Harness Retaining Clips

  1. - Left cylinder head cover engine harness retainers
  2. - Right cylinder head cover engine harness retainers
  3. - Left engine harness
  4. - Makeup air hose
  5. - PCV Hose
  6. - Right engine harness

4. Disconnect engine harness retaining clips (1) from cylinder head cover studs. Position the engine harness (3) aside.

5. Remove fastener attaching ignition coil capacitor.

6. Remove ignition coils.

2.7L DOHC Engine

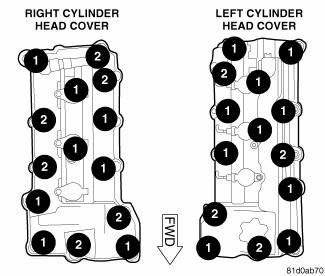

Fig. 119: Cylinder Head Cover Fasteners

  1. - DOUBLE ENDED STUDS
  2. - BOLTS

7. Loosen all left cylinder head cover fasteners.

2.7L DOHC Engine
Fig. 120: Engine Harness Retaining Clips

  1. - Left cylinder head cover engine harness retainers
  2. - Right cylinder head cover engine harness retainers
  3. - Left engine harness
  4. - Makeup air hose
  5. - PCV Hose
  6. - Right engine harness

8. Disconnect the makeup air hose (4).

2.7L DOHC Engine

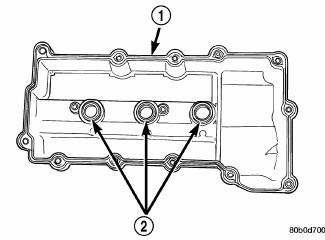

Fig. 121: Cylinder Head Cover Gasket & Spark Plug Seals

  1. - ONE PIECE GASKET
  2. - SPARK PLUG WELL SEALS

NOTE: Cylinder head cover attaching bolts are captured to the cover.

CAUTION: Make certain the double ended studs in the center of the cylinder head cover are loose before attempting to remove cover.

9. Remove the left cylinder head cover (1).

INSTALLATION

2.7L DOHC Engine
Fig. 122: Cylinder Head Cover Gasket & Spark Plug Seals

  1. - ONE PIECE GASKET
  2. - SPARK PLUG WELL SEALS

1. Clean cylinder head cover and both sealing surfaces. Inspect and replace gaskets (1) as necessary.

2.7L DOHC Engine
Fig. 123: Cylinder Head Cover Fasteners

  1. - DOUBLE ENDED STUDS
  2. - BOLTS

2. Install cylinder head cover and hand start all fasteners. Verify that all double-ended studs are in the correct locations (1).

3. Tighten cylinder head cover attaching bolts and double-ended studs to 12 N.m (105 in. lbs.).

2.7L DOHC Engine
Fig. 124: Engine Harness Retaining Clips

  1. - Left cylinder head cover engine harness retainers
  2. - Right cylinder head cover engine harness retainers
  3. - Left engine harness
  4. - Makeup air hose
  5. - PCV Hose
  6. - Right engine harness

4. Reposition the left engine harness (3), and install the left engine harness retainers (1) to the double-ended studs.

5. Install the ignition coils.

6. Install ignition coil capacitor and fastener.

7. Reconnect all electrical connectors.

8. Install ground strap to cylinder head cover stud.

2.7L DOHC Engine
Fig. 125: Engine Harness Retaining Clips

  1. - Left cylinder head cover engine harness retainers
  2. - Right cylinder head cover engine harness retainers
  3. - Left engine harness
  4. - Makeup air hose
  5. - PCV Hose
  6. - Right engine harness

9. Install the makeup air hose.

10. Connect negative battery cable.
